The Story

SquarePlug™ SP500 is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm which is much less than any currently available soldered and solder-less connectors.

What makes SP500 stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely–spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.

With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!

- Shares the same form-factor as SP400, SP500 is an ultra–low–profile connector measures only 8.3mm (0.326") Deep x 17mm (0.67") Wide x 28mm (1.10") Tall for highest packing density
- Serviceable, all–metal plug designed to snug–fit small diameter cables (between 5 to 5.5mm) for optimum strain relief and improved emi protection
- 2 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting

Works Great with  Van Damme 268-005-000 (OD 4.5mm), Mogami W2333 (OD 4mm), W2319 (OD 5mm), Canare GS-4 and Belden 1865A & 8218

Compatible Switching systems are,
RJM Mastermind PBC/10
RJM Mastermind PBC/6X
RJM Mini Effect Gizmo
Disaster Area DPC5
Disaster Area DPC8EZ
Lehle Parallel L / Little Dual / SGoS series / P-Split II / 1AT3
Musicom Lab EFX 6M / 62M / 8L / MKIV / MKV / LE
The Gig Rig Quarter Master QMX2 / 4 / 6 / 8 / 10

SP400, SP500 and SP550 are NOT compatible with,
BOSS ES5 / ES8, The Gig Rig G2 and VoodooLab Hex.
SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

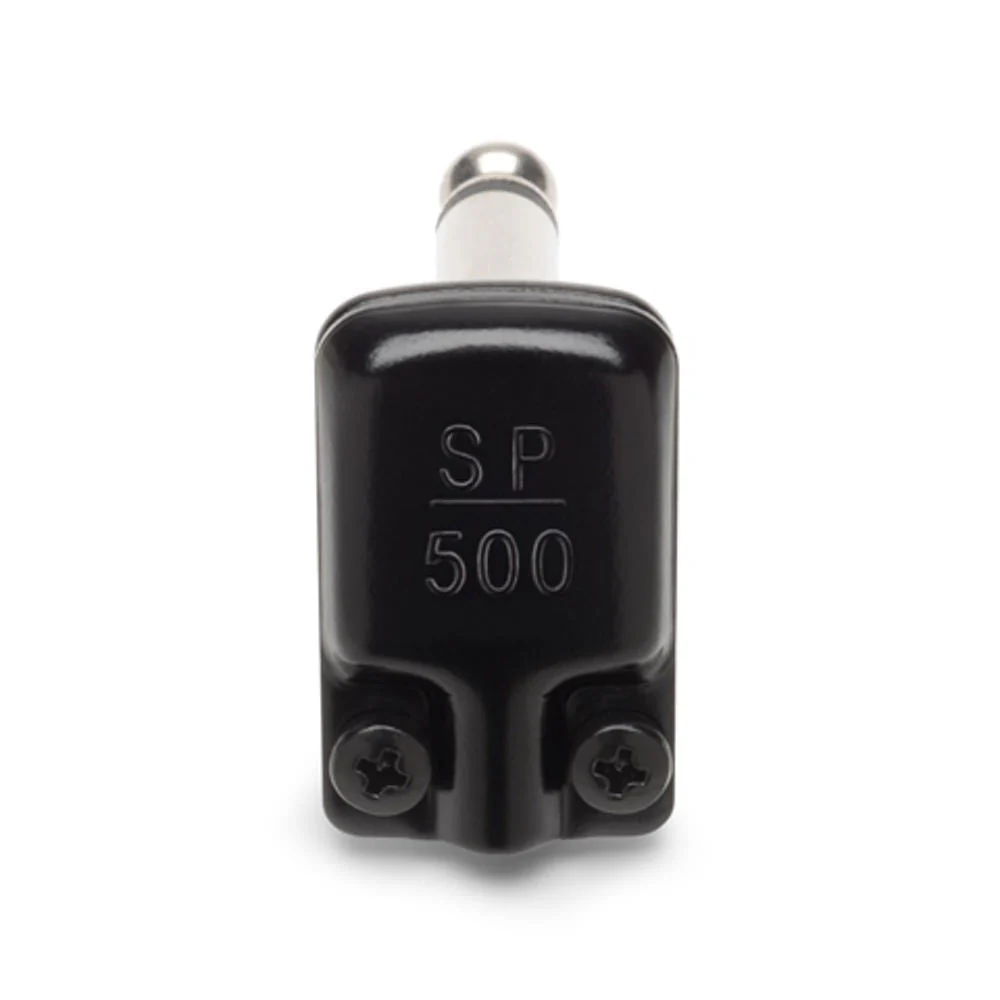

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

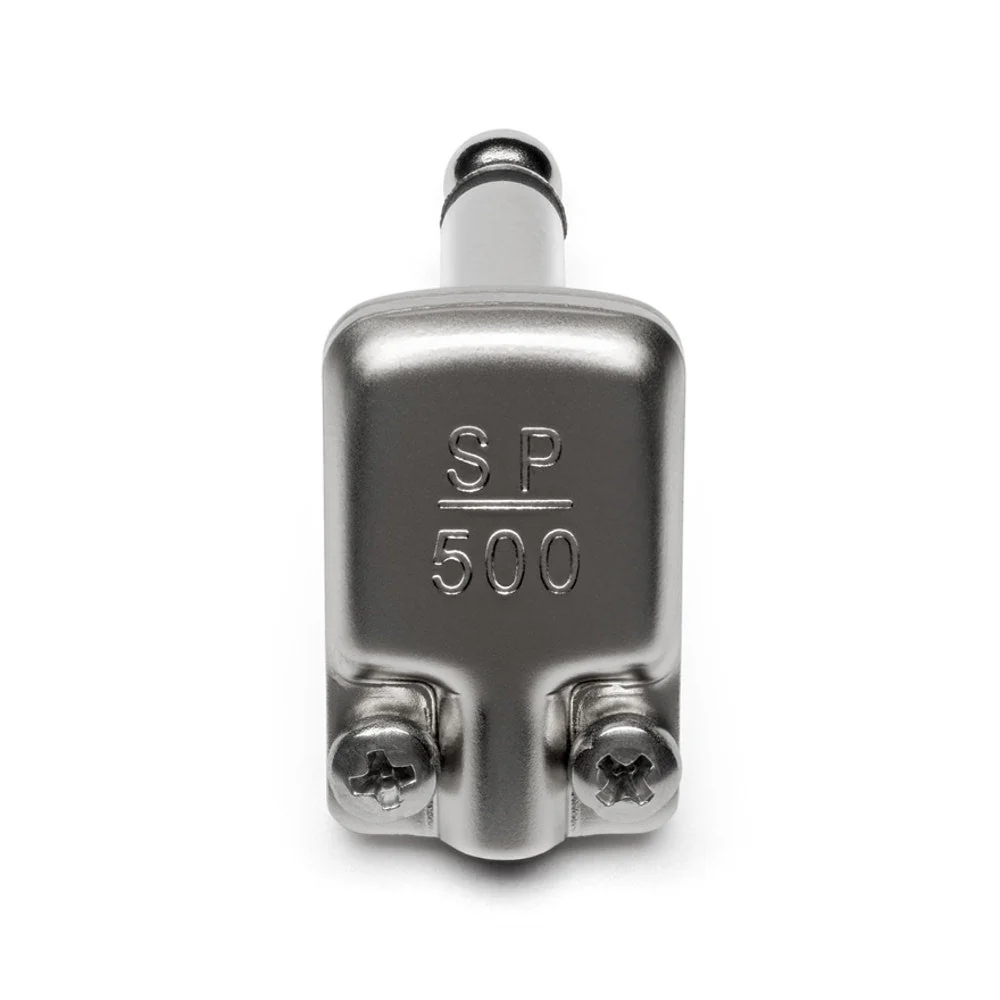

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

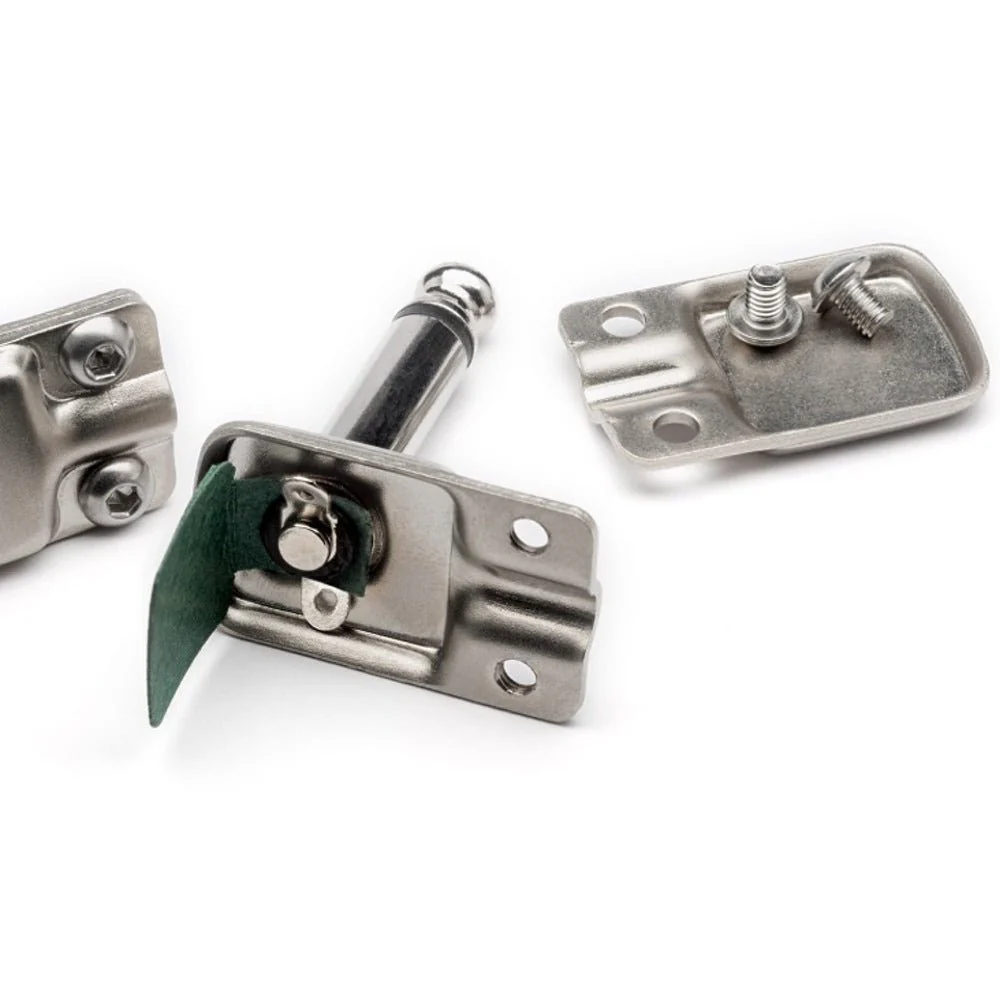

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

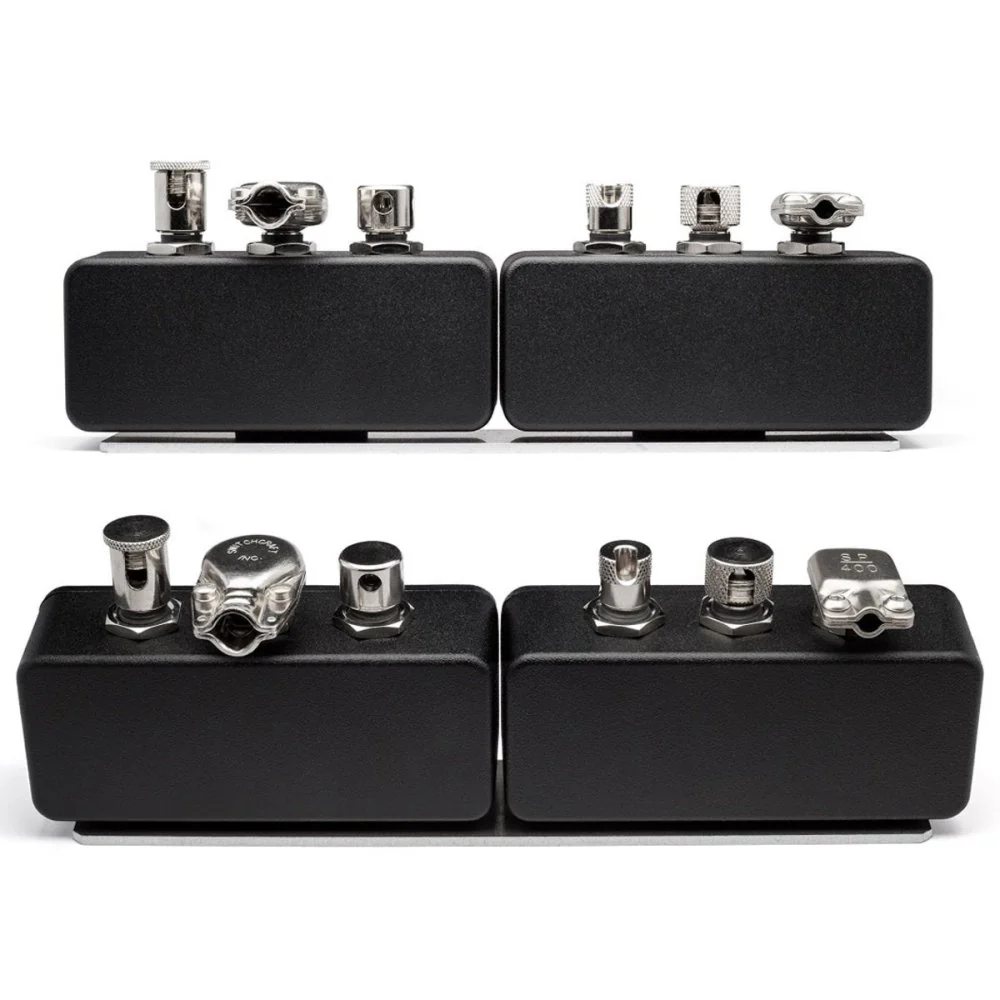

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SquarePlug SP500 Low Profile Flat Right Angle TS Connector up to 5.5mm OD - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

SquarePlug™ SP500 is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm which is much less than any currently available soldered and solder-less connectors.

What makes SP500 stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely–spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.

With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!

- Shares the same form-factor as SP400, SP500 is an ultra–low–profile connector measures only 8.3mm (0.326") Deep x 17mm (0.67") Wide x 28mm (1.10") Tall for highest packing density
- Serviceable, all–metal plug designed to snug–fit small diameter cables (between 5 to 5.5mm) for optimum strain relief and improved emi protection
- 2 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting

Works Great with  Van Damme 268-005-000 (OD 4.5mm), Mogami W2333 (OD 4mm), W2319 (OD 5mm), Canare GS-4 and Belden 1865A & 8218

Compatible Switching systems are,
RJM Mastermind PBC/10
RJM Mastermind PBC/6X
RJM Mini Effect Gizmo
Disaster Area DPC5
Disaster Area DPC8EZ
Lehle Parallel L / Little Dual / SGoS series / P-Split II / 1AT3
Musicom Lab EFX 6M / 62M / 8L / MKIV / MKV / LE
The Gig Rig Quarter Master QMX2 / 4 / 6 / 8 / 10

SP400, SP500 and SP550 are NOT compatible with,
BOSS ES5 / ES8, The Gig Rig G2 and VoodooLab Hex.
