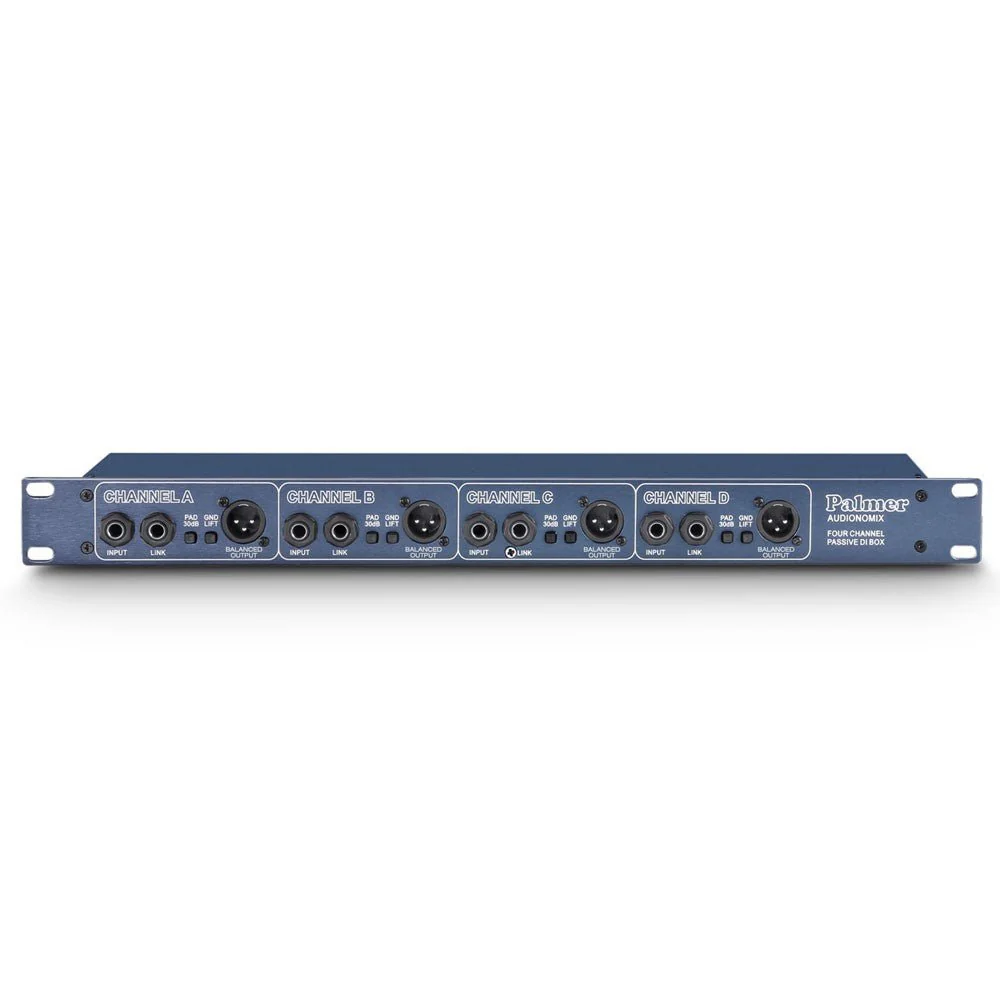

Palmer PAN03 PASS 4 Channel DI Box 19 inch Rack Mount Unit Passive

Passive 4-channel DI BOX in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.

Product type	DI Boxes
Type	passive
Channels	4
Inputs	4
Input connectors	6.3 mm jack
Max. input level	+ 54 dBu
Input impedance	(@ 60 Hz) 68k Ohm(s)
Input pad	0 / -30 dB
Outputs	4 (+ 4 parallel outs)
THRU outputs/channel	1
Output connectors	6.3 mm jack, XLR
Max. output level	+4 dBu
Output impedance	600 Ohm(s)
Frequency response	10 - 40000
Transformer balanced	Yes
Ratio	10 : 1
Controls	attenuation, ground lift
Cabinet material	sheet steel
Cabinet surface	Powder coated
Width	480 mm
Width	19 "
Depth	90 mm
Height	45 mm
Height	1 U
Weight	1,43 kg
