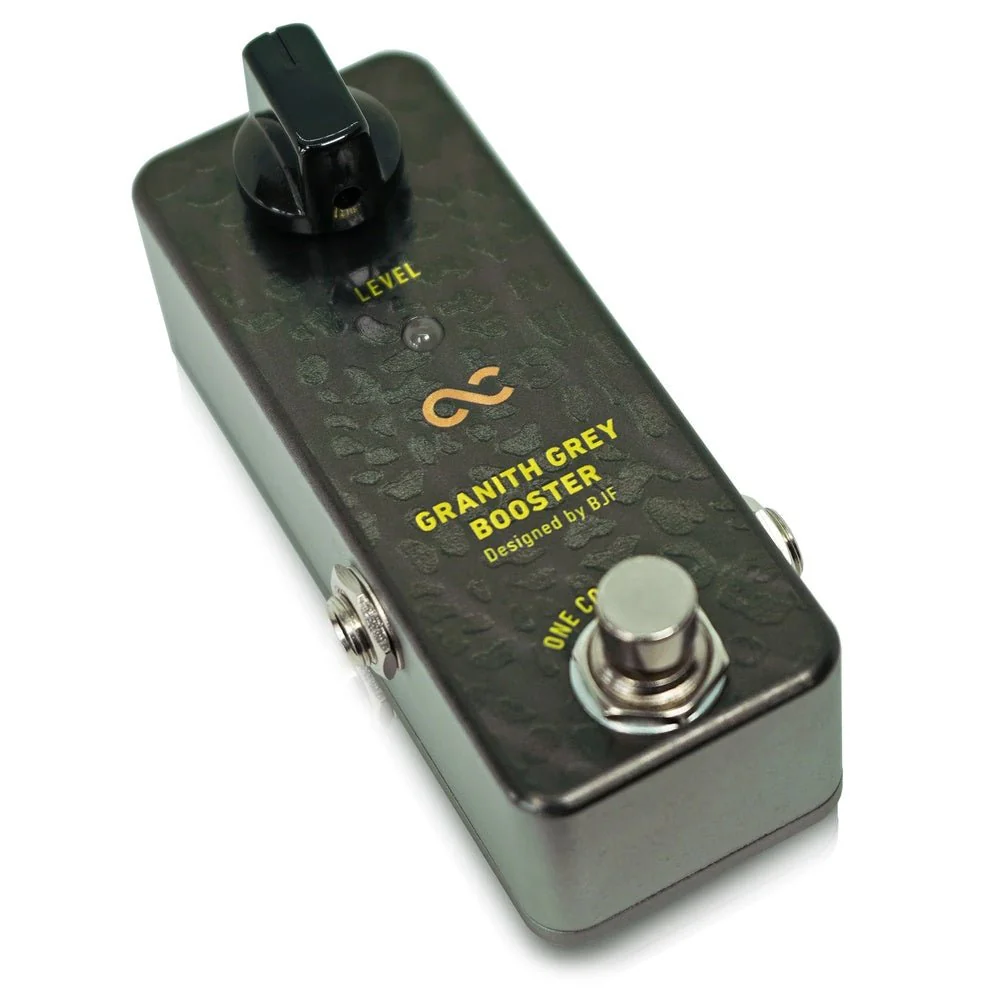

One Control BJF Granith Grey Booster

Features
The GRANITH GREY BOOSTER allows a high-quality boost of up to +15dB with minimized switching noise due to BJF engineered circuitry. This booster is able to attain the equivalent S/N ratio of a high-end amplifier. In order for this to happen, the circuitry was created to fit the frequency range of an electric guitar, which lowers some overtones that coud otherwise be present with other boosters.

Specifications
Input impedance: 500K
Output impedance: 2K
Maximum gain:+ 15dB
Drive voltage: 8.8VÔΩû9.6V
Current consumption: 1mA
S/N ratio: 115dB
Total harmonic distortion rate: 0.006% (1 kHz)
Size:39Wx100Dx31H mm (excluding protruding parts)
 „ÄÄ„ÄÄ47Wx100Dx48H mm (including protruding parts)
Weight: Approx. 140 grams
True-Bypass Switching
High Quality Aluminum Enclosure
Power: 9V Battery or Standard DC Power Supply
