The Story

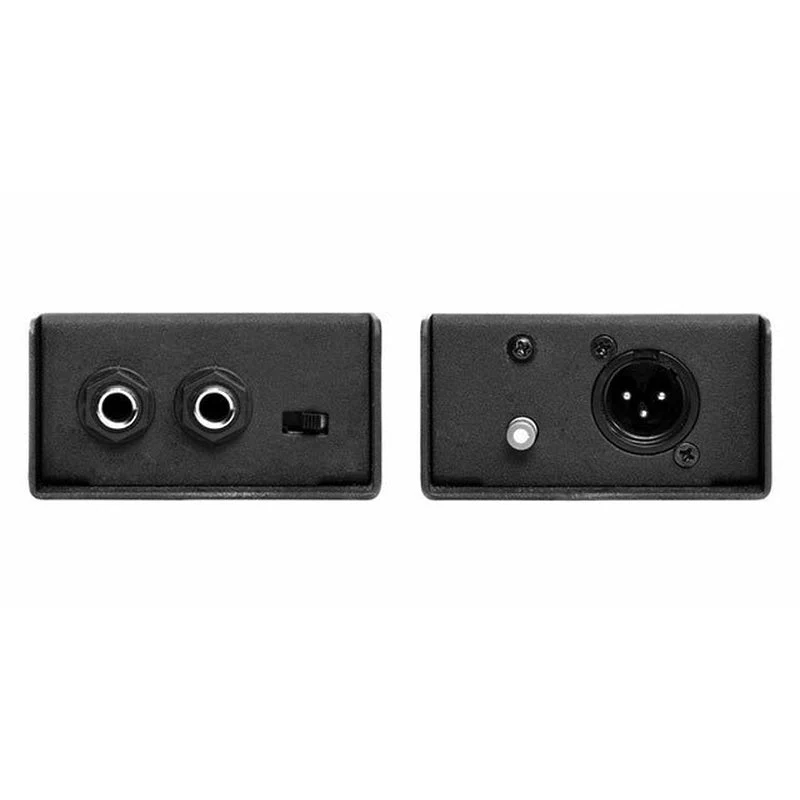

The DB500 Direct Box transforms any high-impedance 1/4" source into a low-impedance (XLR) signal ready to be sent long distances to a mixing board or recording console.
Its passive design features a high quality transformer, ground lift switch, and does not require batteries or phantom power. Perfect for bass/acoustic guitar, keyboards, and DJ equipment.
Single channel, passive direct box
Transform any high-impedence .25" source into a low-impedence (XLR) signal
High-quality transformer
Ground lift switch
Input Impedence: 50K ohms
Output Impedence: 80 ohms
Frequency Response: 10-40kHz
Construction: All metal
Dimensions: (w)4.75 x (h)1.5" x (d)3"
Weight: .97 lbs
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The DB500 Direct Box transforms any high-impedance 1/4" source into a low-impedance (XLR) signal ready to be sent long distances to a mixing board or recording console.
Its passive design features a high quality transformer, ground lift switch, and does not require batteries or phantom power. Perfect for bass/acoustic guitar, keyboards, and DJ equipment.
Single channel, passive direct box
Transform any high-impedence .25" source into a low-impedence (XLR) signal
High-quality transformer
Ground lift switch
Input Impedence: 50K ohms
Output Impedence: 80 ohms
Frequency Response: 10-40kHz
Construction: All metal
Dimensions: (w)4.75 x (h)1.5" x (d)3"
Weight: .97 lbs
