Lee Custom Amp TX-1 Transformer Amplified Clean Boost w/ 140dB S/N Ratio

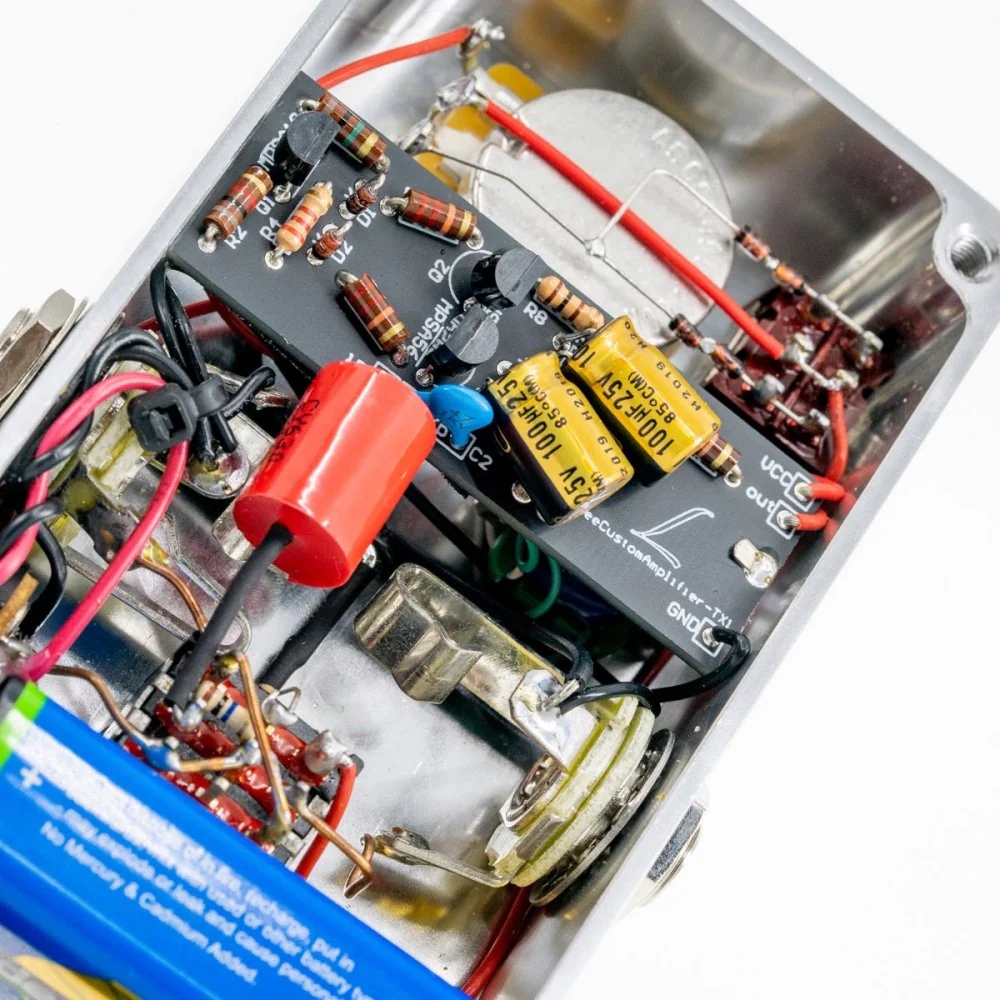

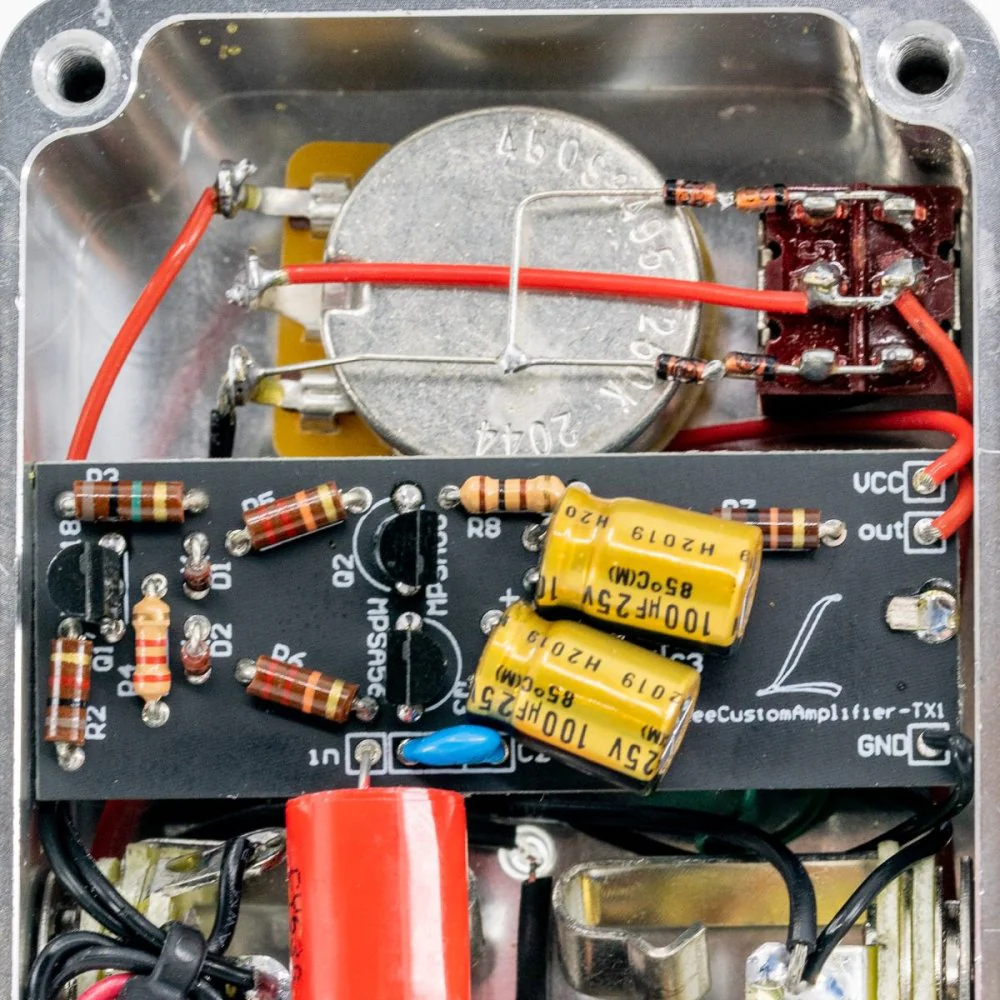

Lee Custom Amp TX-1 is transformer amplified clean boost, manufactured with clear anodised aluminium machined chassis, CTS pot, and Point-to-Point wiring. The power supply is DC 9 V / built-in 9 V battery, and the maximum current consumption is about 3 mA.

There is no distortion even with an 8Vpp input, a maximum of 120Vpp can be output at volume max, and the S/N ratio is 140dB (volume max).

Although a protective resistor is included, an output amplitude limit switch (3way) is installed to avoid the effects of high voltage output on other devices.

Please use the optimum setting according to the input/output amplitude, volume setting, voltage of the device used,.

3-Way Switch
- Up Position = 30Vpp (rack equipment, etc.)
- Centre Position = no limit (direct boost for tube amps, etc.)
- Down Position = 9Vpp (9V effectors, etc.)
