Free-Way Pickup Switch 3+3 Position Multi Switch Fits Les Paul, PRS & 335-Style Guitars

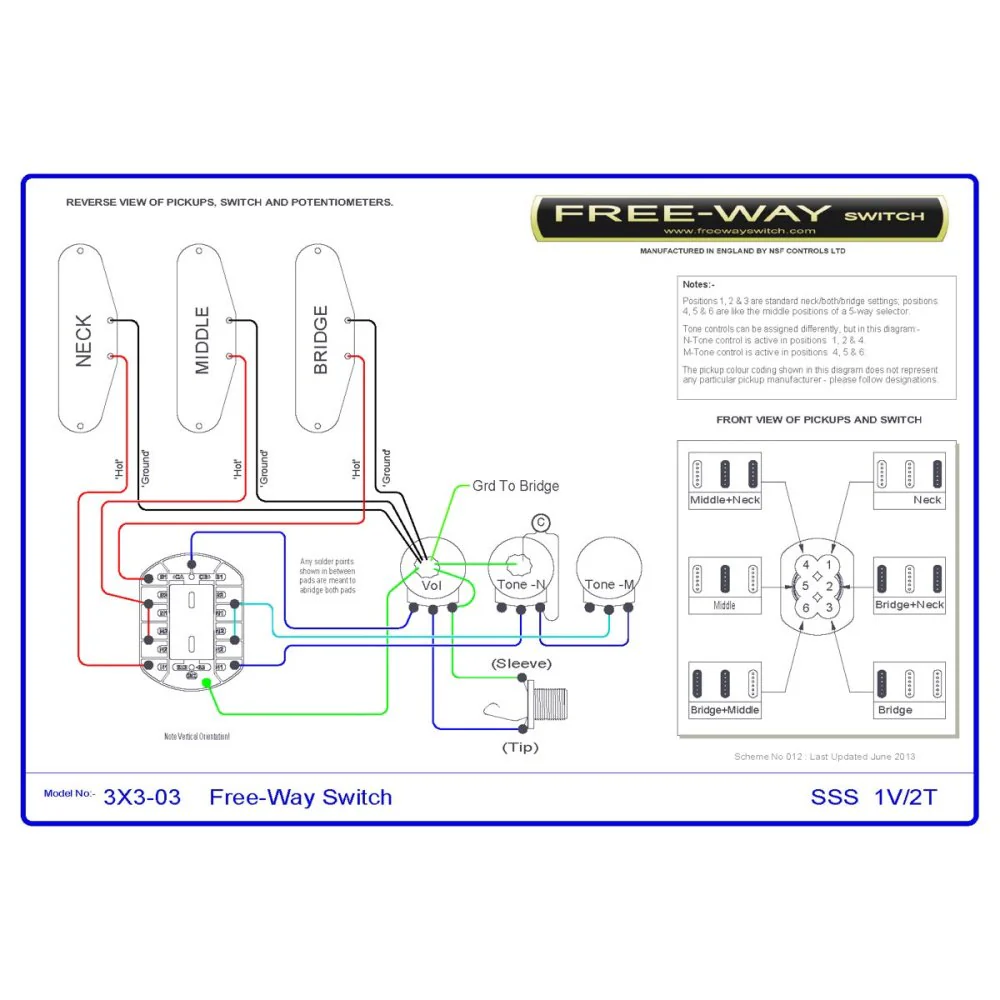

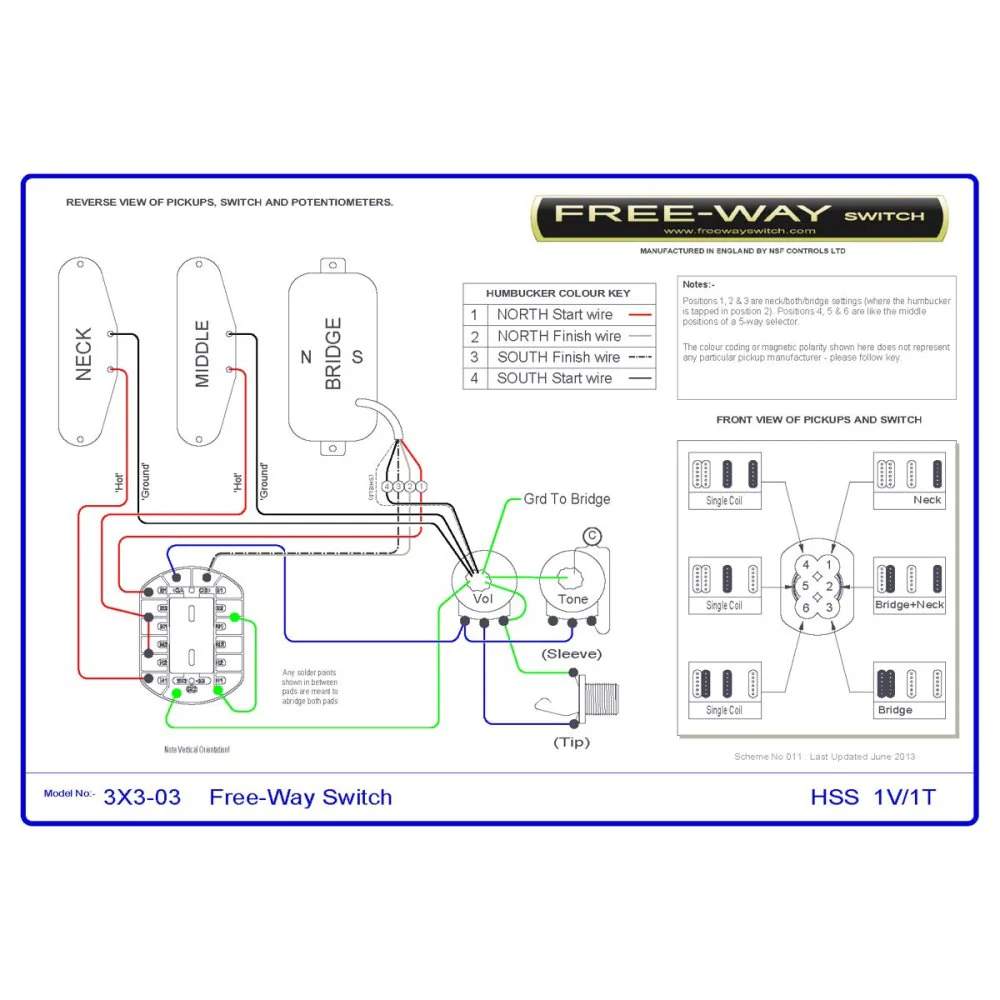

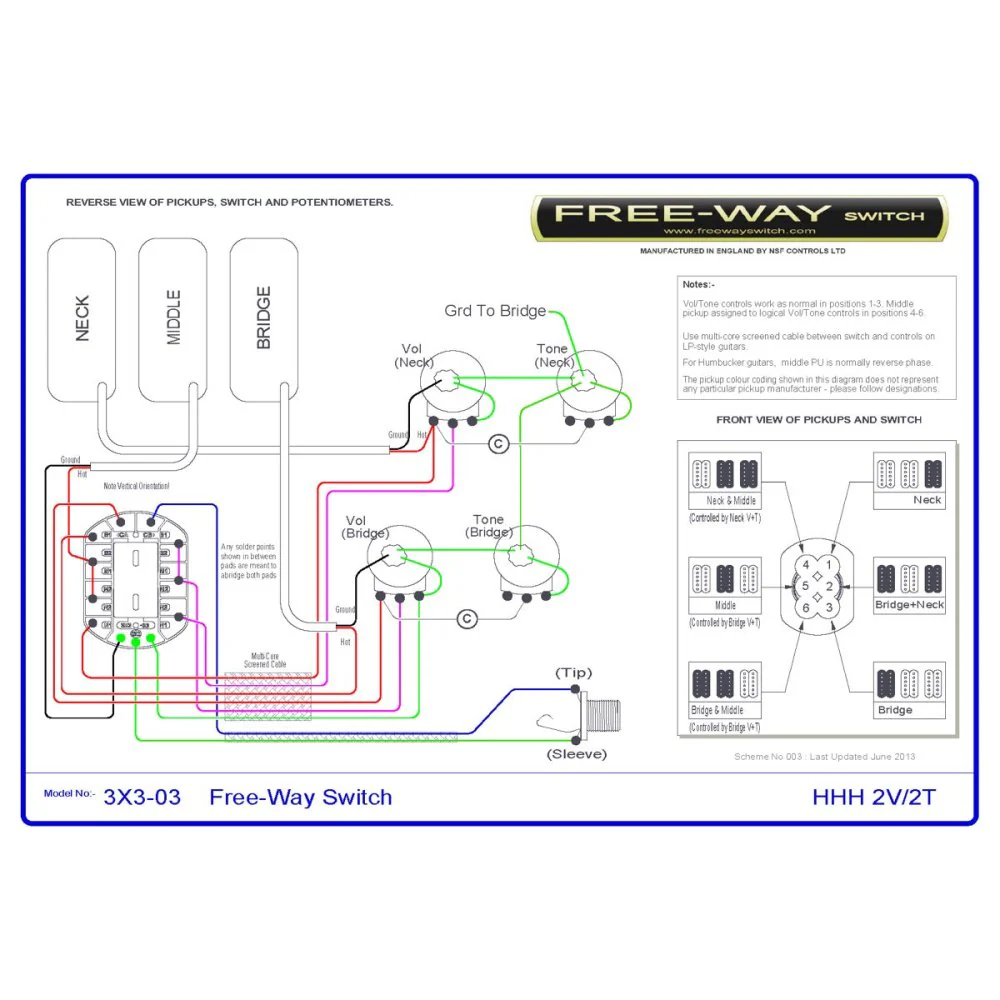

6 Position multi-function switch providing circuits for three pickup guitars; HH coil-split; piezo pickups; HSH and HSS schemes in particular.

The 3X3-03 has 15 terminal connections providing flexibility for all kinds of variations on the above schemes and scope for custom circuit design as well.

Now fits a Gibson^® Les Paul^® switch cavity without routing! This is an upgrade of the unique switch originally installed in the Jimmy Page Les Paul^® Custom.

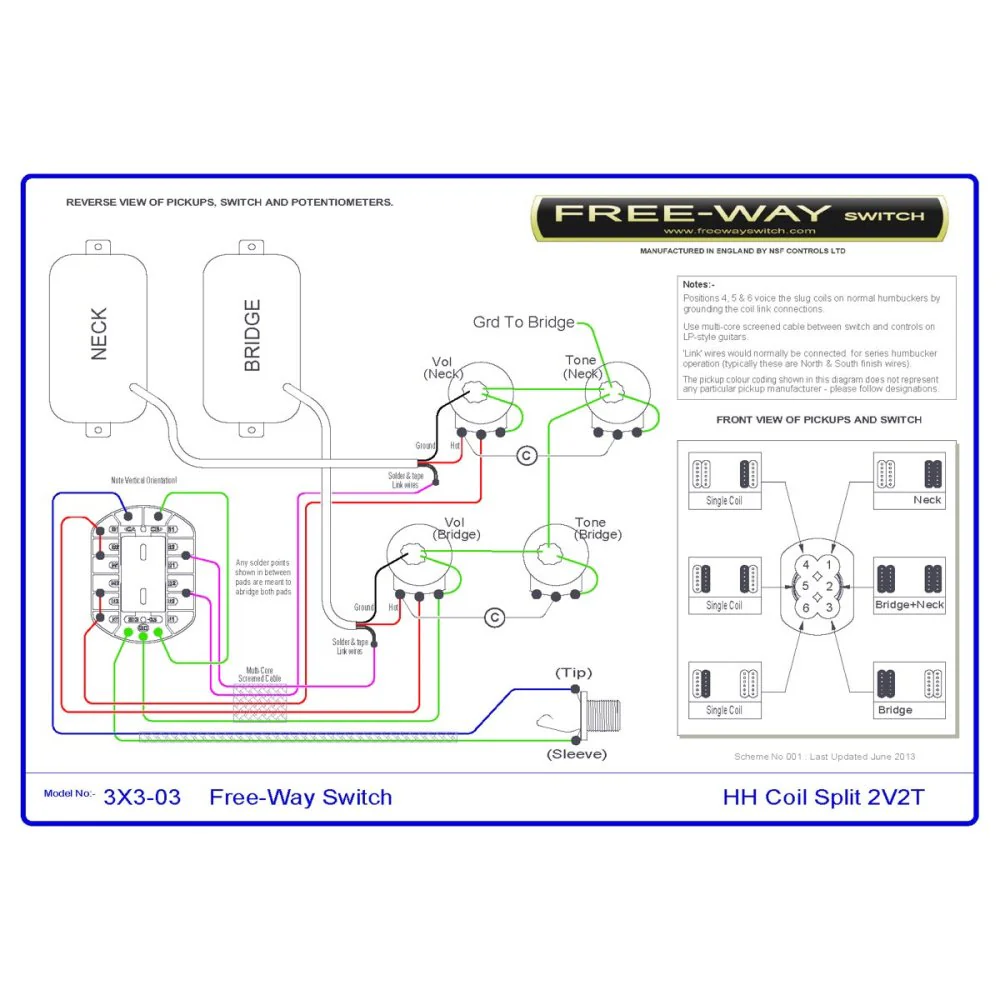

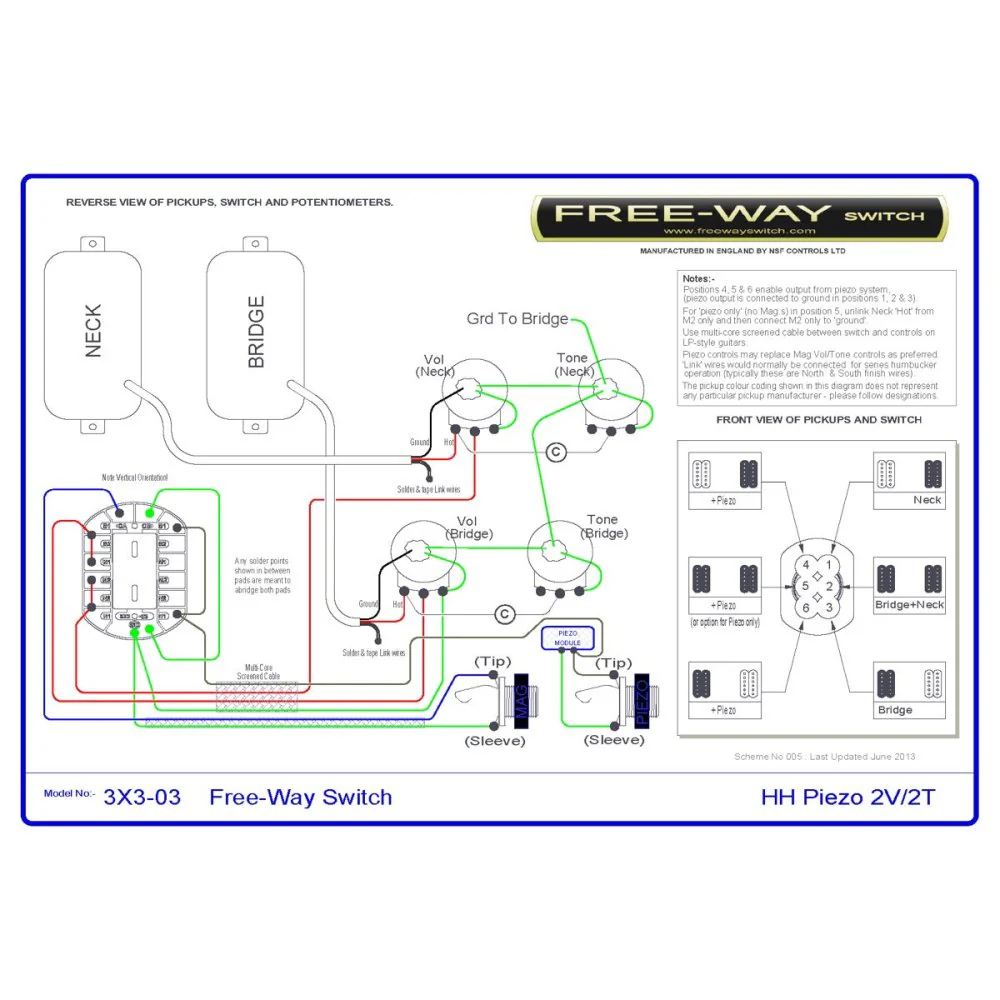

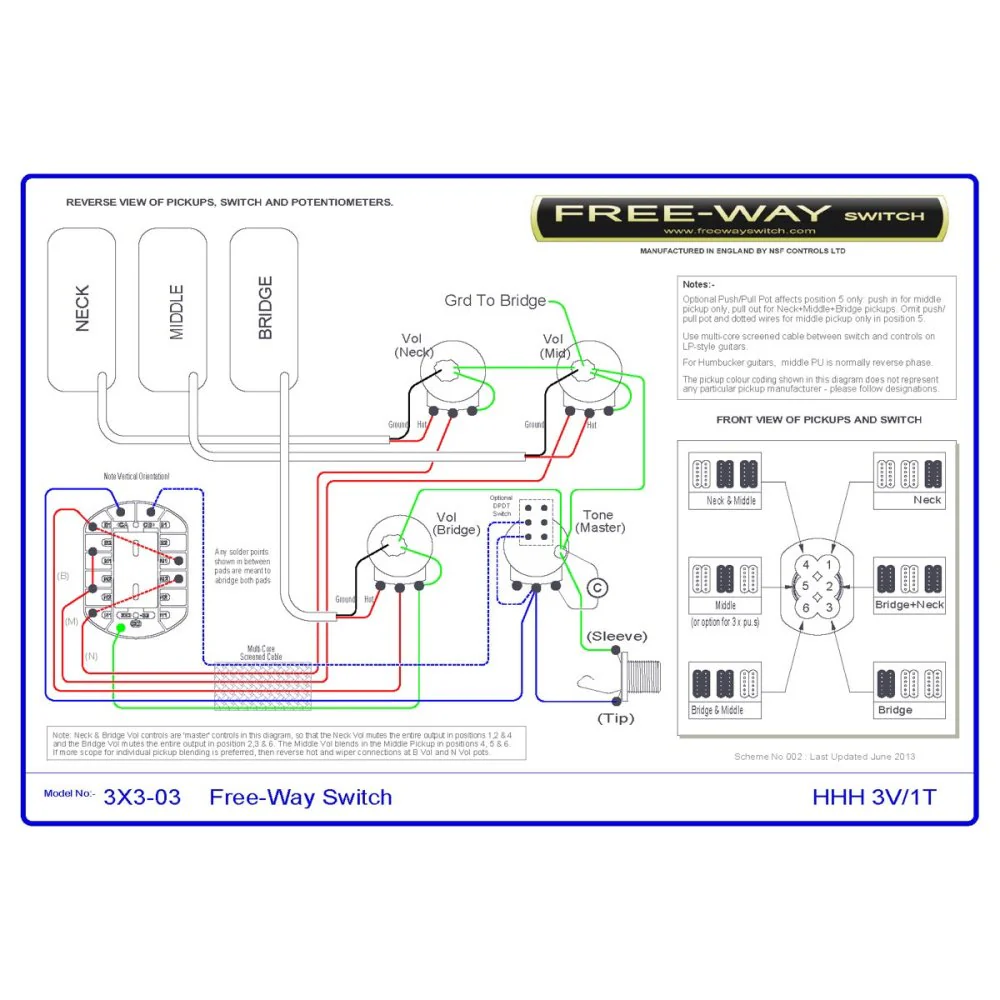

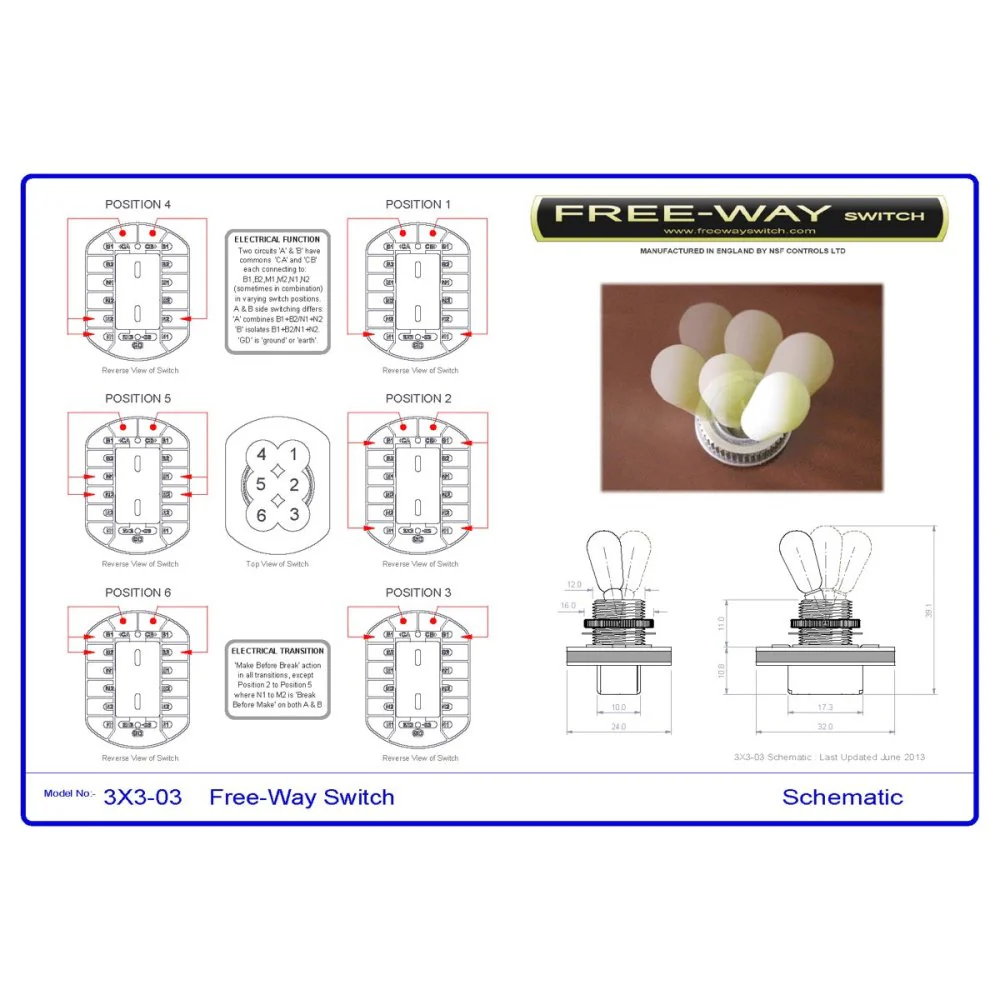

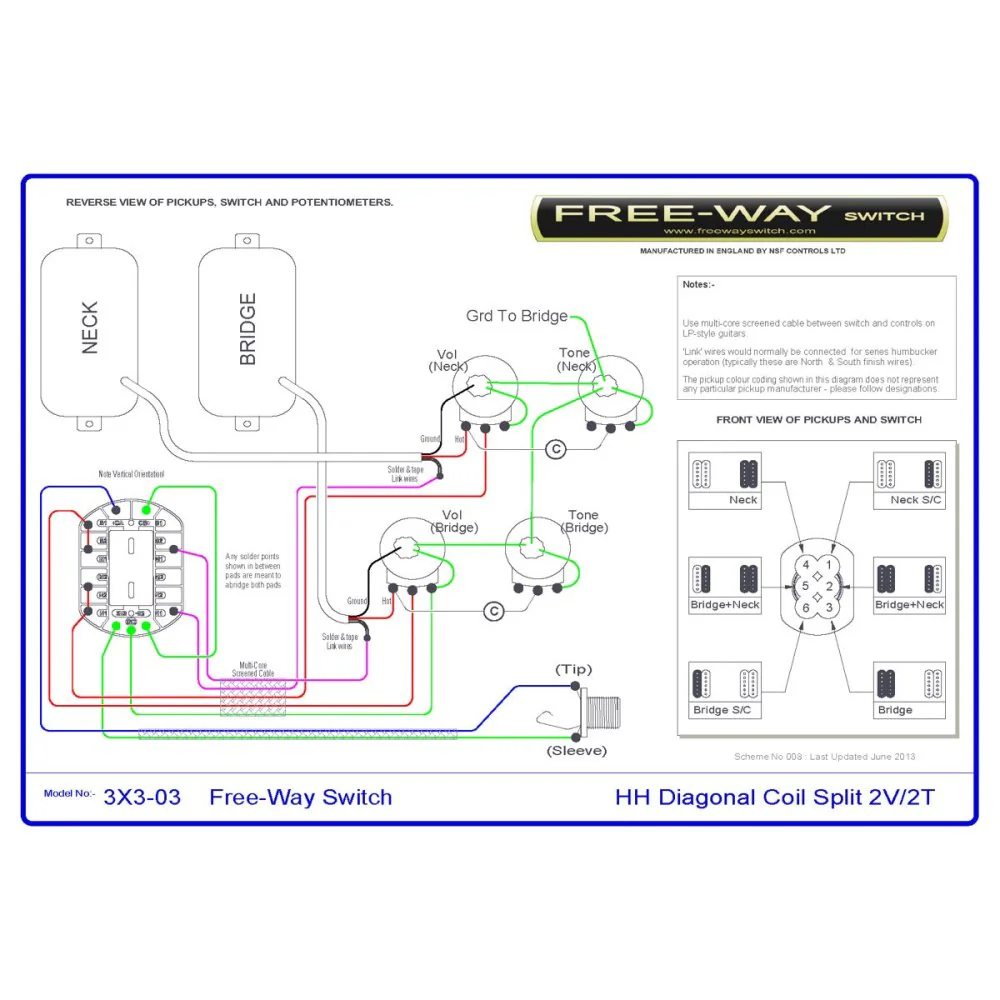

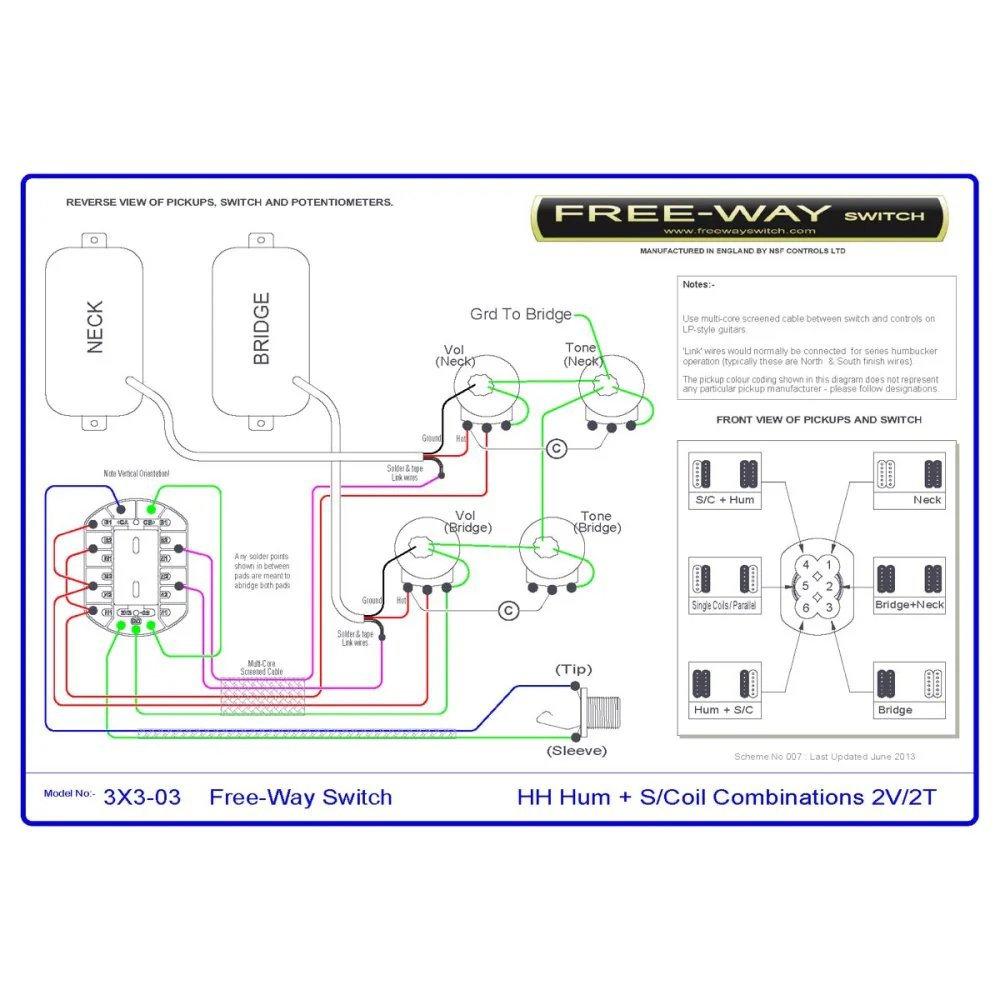

6-way guitar gearshift! It does the work of multiple standard switches: 2-pole, 6-position transverse toggle action broadens wiring options and tone possibilities. Great for coil-splitting, 3-pickup selection, piezo pickup activation, and humbucker / single-coil / humbucker switching.

Featuring
No-rout installation
Compact size can be used in most guitars
More wiring configurations
Improved switching feel
Space-saving gold-plated solder pad connections

Includes
Mounting nut with flat washer
Cream and Black knobs

For more Instructions & Wiring Options - Download PDF HERE
