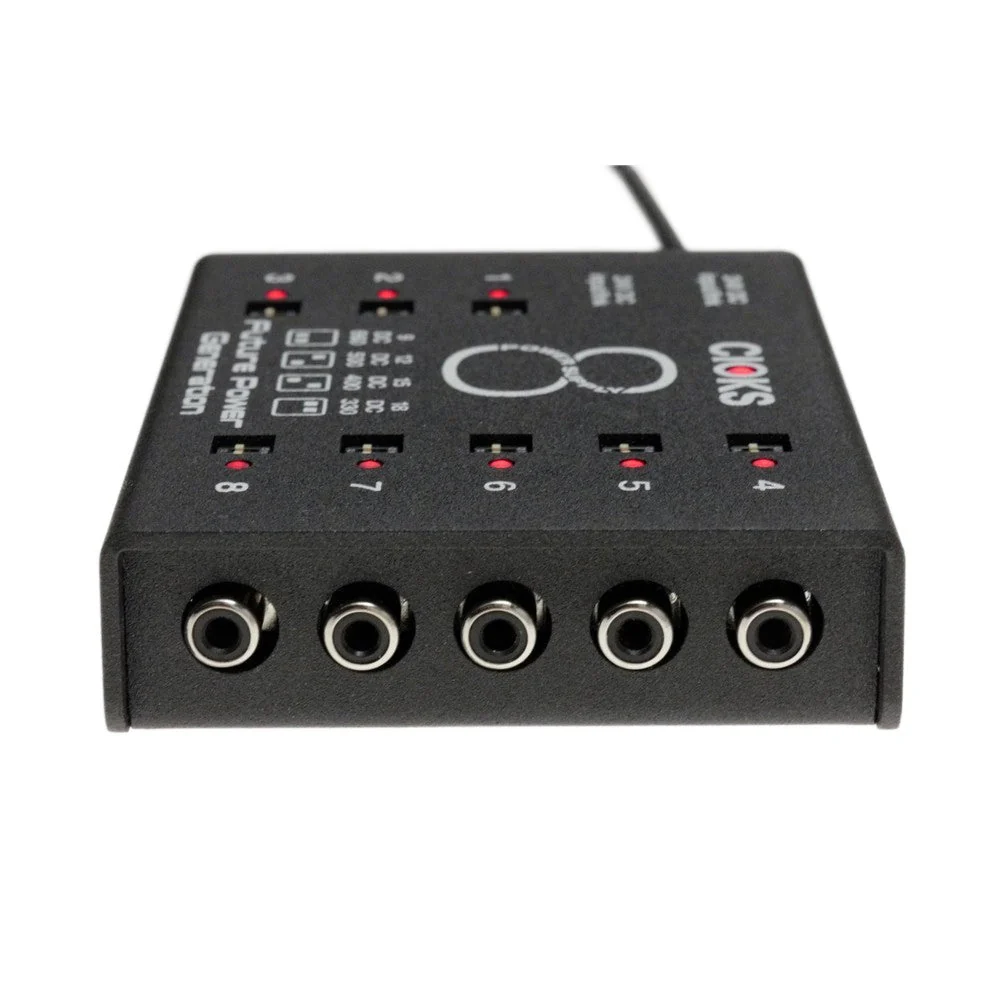

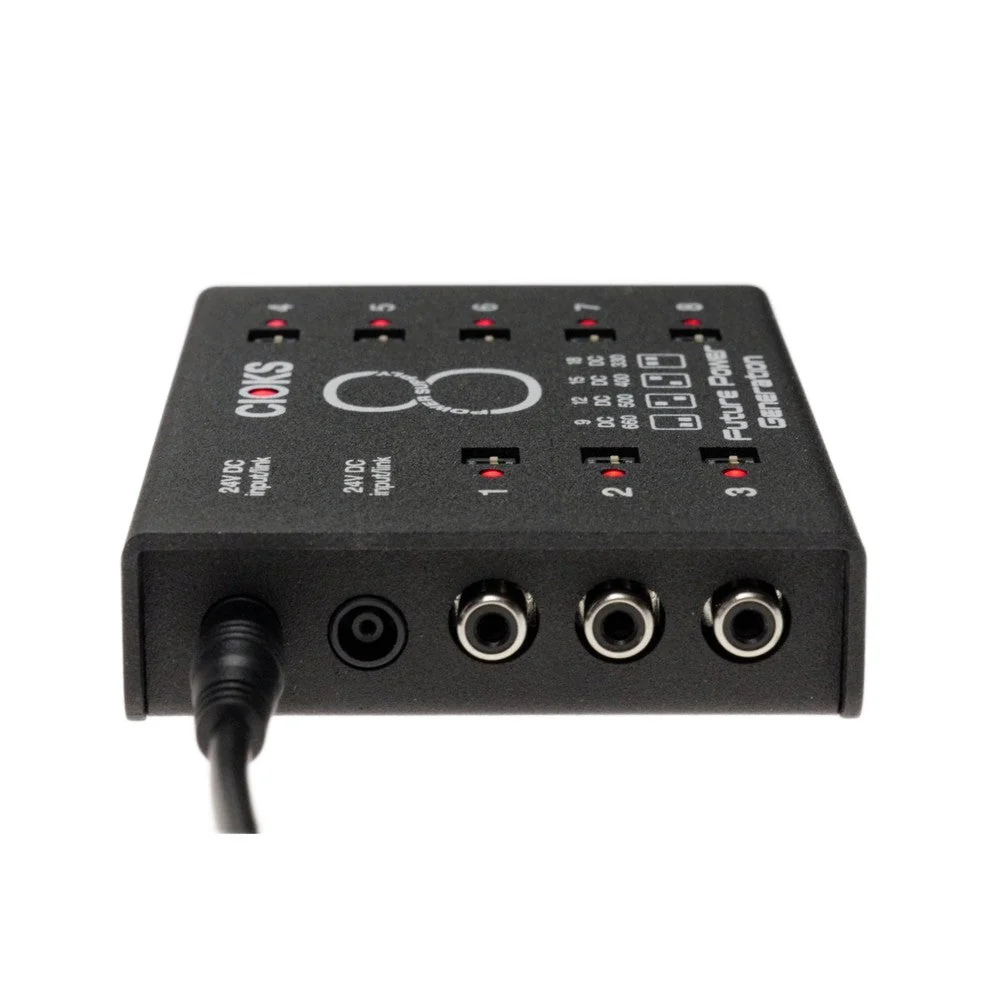

CIOKS CIOKS 8 Insanely Powerful 24V Power Supply Expander

The largest member of the Future Power Generation

CIOKS 8 is our largest switch-mode power supply expander and it features 8 isolated outlets which each deliver 9V DC at 660mA. All outlets offer four selectable voltages (9, 12, 15 or 18V).

CIOKS 8 was mainly designed to be used as a large extension to the DC7 power supply in case you need more outlets. If you want to use CIOKS 8 as an extension to the DC7, simply connect CIOKS 8 to the courtesy 24V outlet on your DC7 with the included 24V DC Link cable and you are good to go.

If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution where this combo will give you 15 isolated outlets in total plus a 5V USB outlet to charge your smartphone or tablet.

You can also pair this unit Strymon ZUMA & ZUMA R300 using its 24V output

• CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7

• Ultra-low noise achieved by multistage filtering

• 8 isolated DC-outlets, 6W each

• 660mA at 9V DC on each outlet

• 4 selectable voltages on each outlet

• Global overload status LED

• Mounting hardware for Pedaltrain and Templeaudio boards included

• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
• 12 Flex cables included

• 24V DC Link cable included

• Designed in Denmark, assembled in Poland


Outlets 1-8:


9V DC / 660mA or

12V DC / 500mA or

15V DC / 400mA or

18V DC / 330mA each


If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7).

Flex cables included:

Total of 12 Flex cables are included. The user is able to power 11 pedals of the BOSS standard type with the included Flex kit.

1x 1015 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
3x 1030 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
2x 1050 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)
1x 2050 – Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)
1x 4050 – Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)
1x 5050 – Type 5 - 3,5mm Jack plug, tip positive, L-shape, 50cm (black)
1x 1035 – Split Flex type 1, 30+50cm (black)

1x 1533 – 3-way daisy chain Flex type 1, 30-30-50cm (black)
