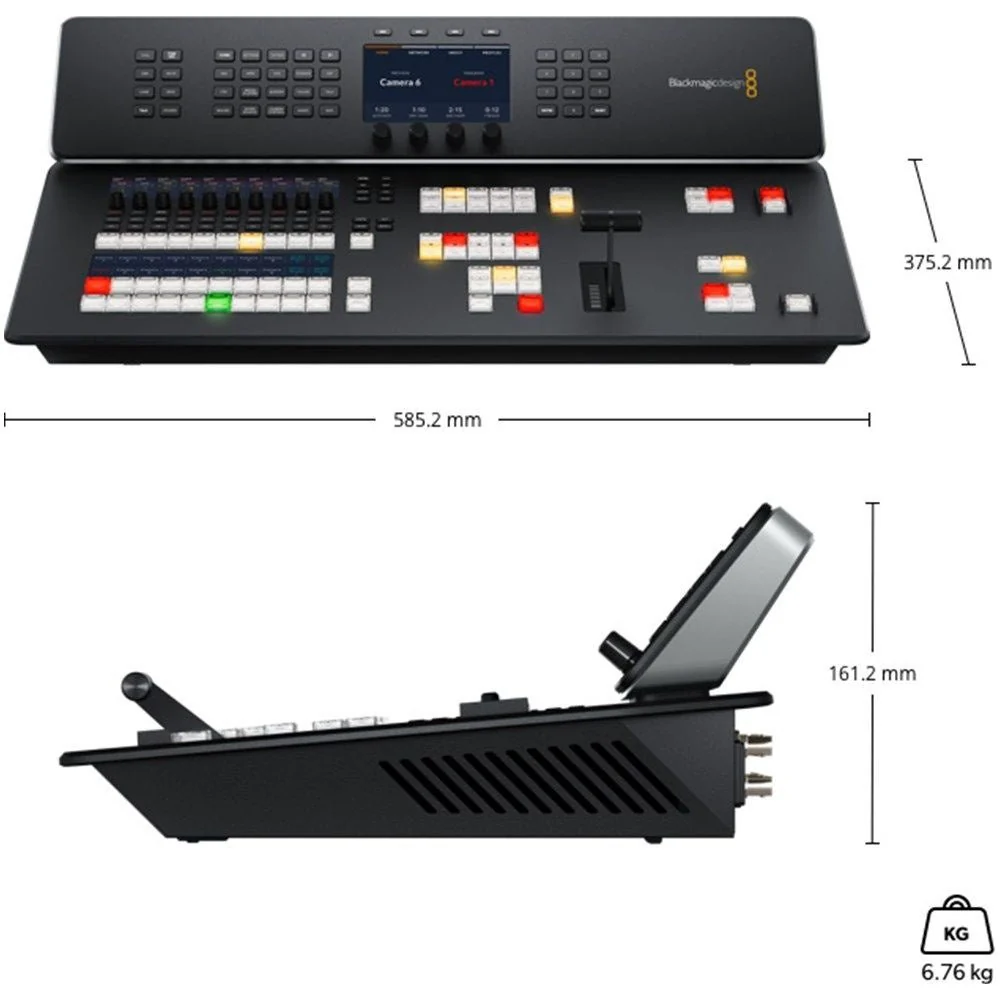

Blackmagic Design ATEM Television Studio HD8 ISO Live Production Switcher

ATEM Television Studio HD8 ISO includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!

Features

• ISO recording of all 8 inputs to separate video files
• SDI Video Inputs: 8
• SDI Video Outputs: 12
• SDI Rates: 1.5G, 3G
• HDMI Video Outputs: 1
• 2 x XLR balanced analog audio input
• 1 x BNC 32 Ch MADI digital audio input
• 2 x RCA stereo analog audio input
• 1 x 5 pin XLR Talkback input
• 4 x 1/4 inch Jack analog audio output
• 1 x BNC 64 Ch MADI digital audio, up to 50 active output
• 1 x 5 pin XLR Talkback output
• SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs
• SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs
• Timecode Connections: 1 x BNC In, 1 x BNC Out
• SDI Aux Outputs: 2
• SDI Program Outputs: 1
• Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate
• 1 x 3G-SDI
• 1 x HDMI
• Supports direct live streaming using Real Time
• Messaging Protocol (RTMP) over ethernet or a shared
• Internet connection over USB-C
