The Story

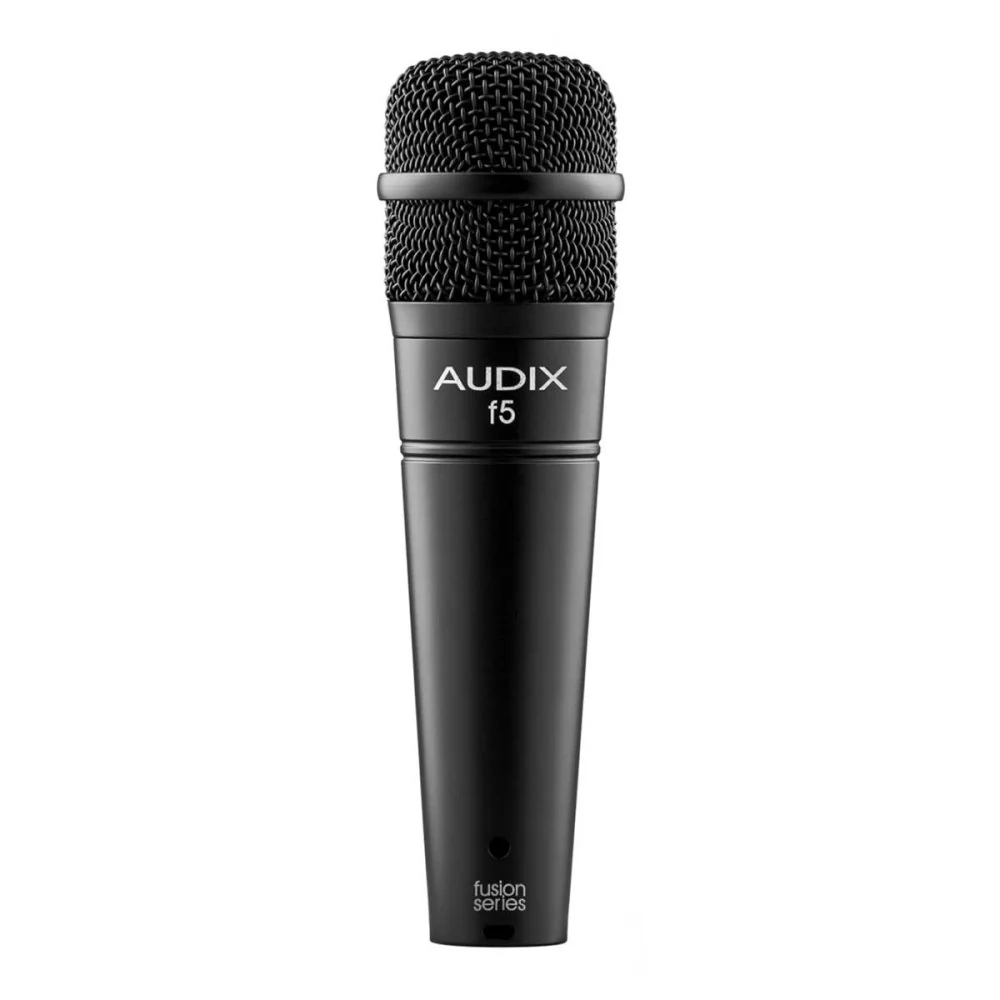

The Fusion Series microphones represent affordable excellence. The f5 dynamic instrument microphone is an ideal choice for snare, toms, percussion, and acoustic instruments in live and studio applications. A hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound. The f5’s low impedance and balanced output allow interference-free performance. Designed, assembled, and tested by Audix in the USA. Specifications Transducer Type Dynamic Frequency Response 55 Hz – 15 kHz Polar Pattern Hypercardioid Output Impedance 580 ohms Sensitivity 2.2 mV / Pa @ 1k Capsule Technology LM Type A Off-Axis Rejection >20 dB Maximum SPL ≥137 dB Power Requirements None Connector 3-pin XLRm Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector Materials / Finish Zinc Alloy / Black Finish Weight 283 g / 10 oz Length 145 mm / 5.7 in
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Fusion Series microphones represent affordable excellence. The f5 dynamic instrument microphone is an ideal choice for snare, toms, percussion, and acoustic instruments in live and studio applications. A hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound. The f5’s low impedance and balanced output allow interference-free performance. Designed, assembled, and tested by Audix in the USA. Specifications Transducer Type Dynamic Frequency Response 55 Hz – 15 kHz Polar Pattern Hypercardioid Output Impedance 580 ohms Sensitivity 2.2 mV / Pa @ 1k Capsule Technology LM Type A Off-Axis Rejection >20 dB Maximum SPL ≥137 dB Power Requirements None Connector 3-pin XLRm Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector Materials / Finish Zinc Alloy / Black Finish Weight 283 g / 10 oz Length 145 mm / 5.7 in
