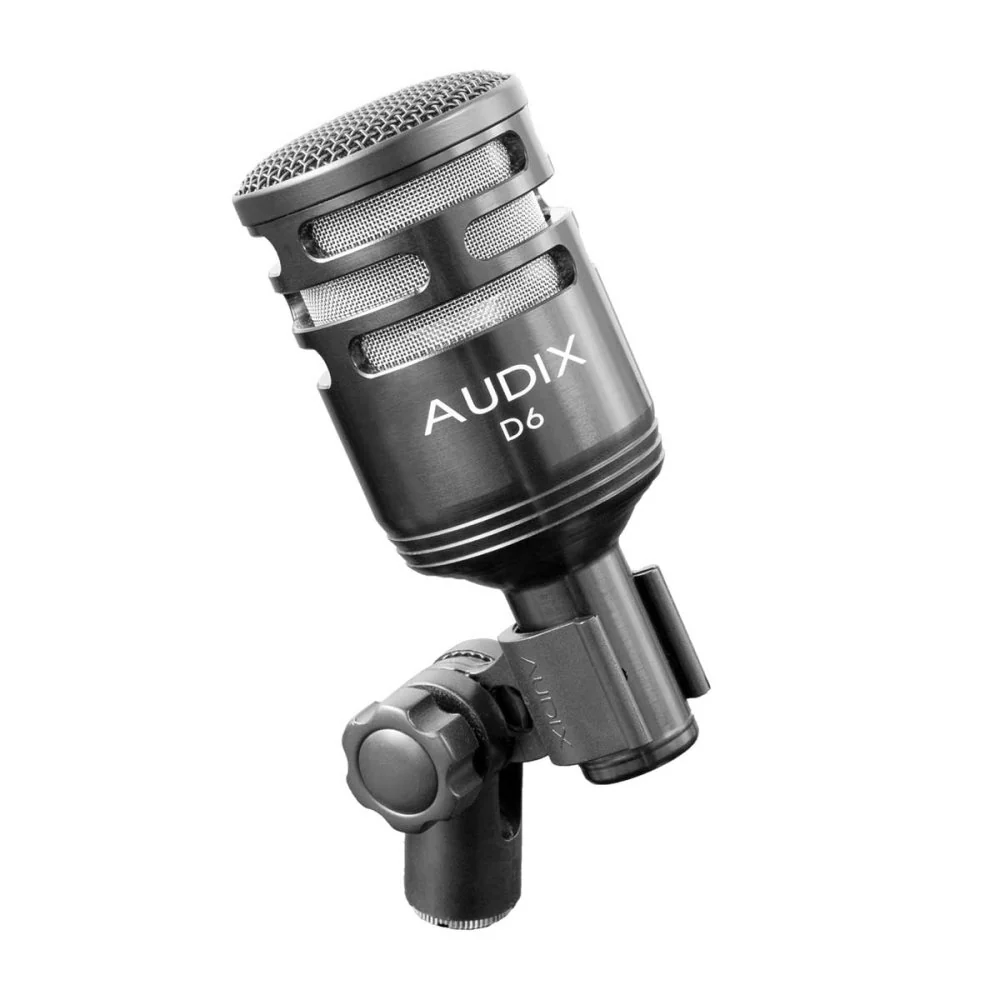

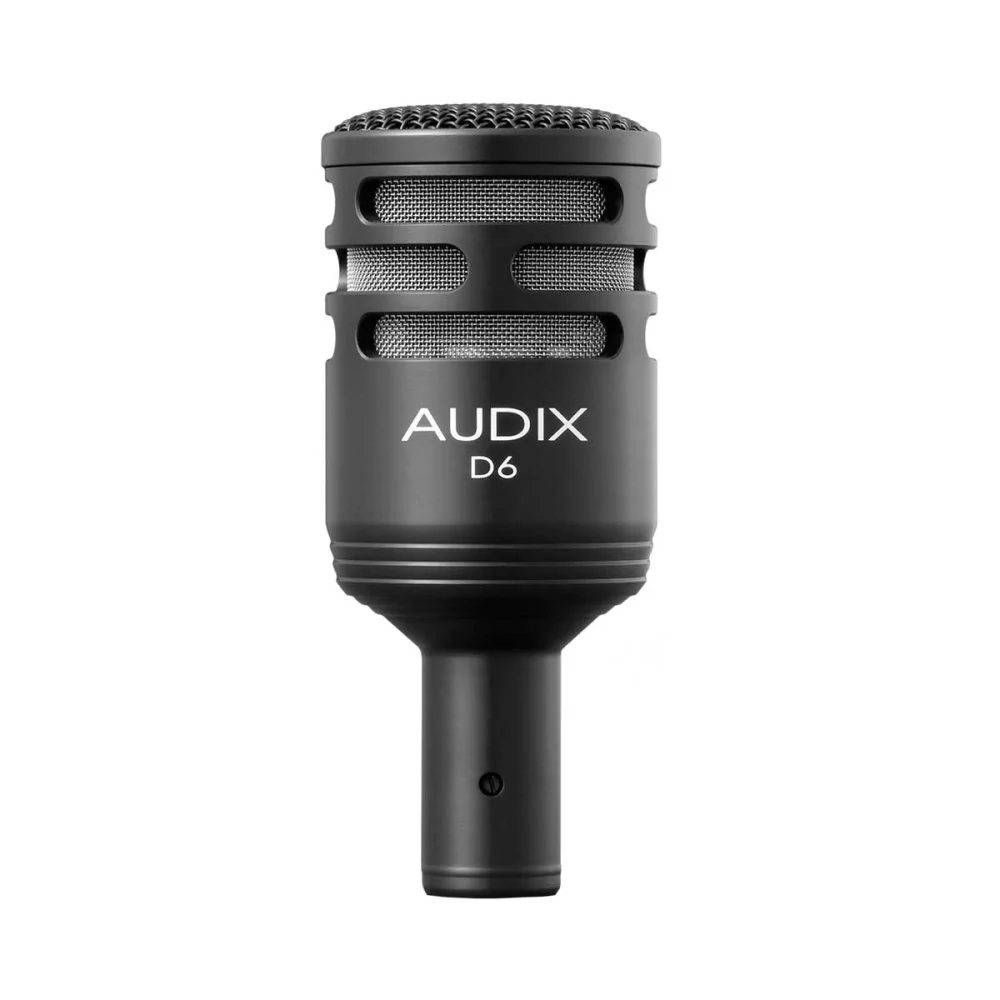

Audix D6 Dynamic Instrument Microphone

The D6 dynamic instrument microphone is used for stage, studio, and broadcast applications. Designed with a cardioid pickup pattern for isolation and feedback control, the D6 drum microphone is equipped with a VLM™ diaphragm for natural, accurate sound reproduction. Lightweight, compact, and easy to position, the D6 cardioid microphone is an excellent choice for miking instruments requiring extended low-frequency reproduction such as kick drums, large toms, and bass cabinets. The D6’s transformerless design, low impedance, and balanced output allow for interference-free performance. Designed, machined, assembled, and tested by Audix in the USA. Specifications Transducer Type Dynamic Frequency Response 30 Hz – 15 kHz Polar Pattern Cardioid Output Impedance 280 ohms Sensitivity 0.8 mV / Pa @ 80 Hz Capsule Technology VLM Type E Off-Axis Rejection >20 dB Maximum SPL ≥144 dB Power Requirements None Connector 3-pin XLRm Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector Materials / Finish Machined Aluminum / Black Finish Weight 254 g / 8.9oz Length 117 mm / 4.6 in
